D441X系列法兰式蝶阀 |
|
|
技术参数 |
||
|
公称压力 PN16 |
环境温度 -20℃～+80℃ |
|
|
密封材料 NBR、EPDM、PTFE |
工作温度 |
C1：-10℃～60℃ |
|
连接方式 对夹式 |
C2：-20℃～80℃ |
|
|
阀体材质 WCB、SS304、SS316、SS316L |
C3：-20℃～120℃ |
|
|
阀板材质 铸铁、WCB、SS304、SS316、SS316L |
C4：-40℃～150℃ |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

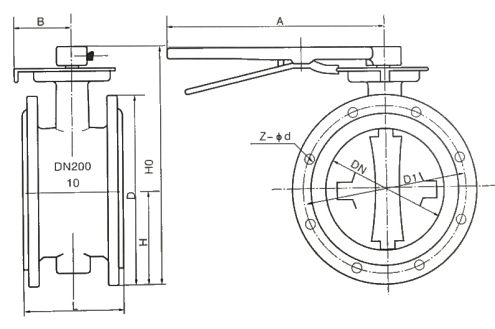

主要外形及连接尺寸 |
|||||||||||||
|
型号 |
通径 |
D1 |
D |
Z-Φd |
H |
H1 |
G*f/K |
J |
B |
E |
4-ΦF |
H2 |
N.m |
|
D441X |
50 |
125 |
165 |
4-18 |
200 |
80 |
12.6*9.8/11 |
1-3 |
65 |
50 |
4-7.5 |
27 |
22 |
|
D441X |
65 |
145 |
185 |
4-18 |
219 |
89 |
12.6*9.8/11 |
1-3 |
65 |
50 |
4-7.5 |
27 |
28 |
|
D441X |
80 |
160 |
200 |
8-18 |
240 |
95 |
12.6*9.8/11 |
1-3 |
65 |
50 |
4-7.5 |
27 |
44 |
|
D441X |
100 |
180 |
220 |
8-18 |
270 |
114 |
15.8*11/11 |
1-5 |
90 |
70 |
4-10 |
27 |
69 |
|
D441X |
125 |
210 |
250 |
8-18 |
295 |
125 |
18.9*13/14 |
1-5 |
90 |
70 |
4-10 |
27 |
114 |
|
D441X |
150 |
240 |
285 |
8-22 |
330 |
142 |
18.9*13/14 |
1-5 |
90 |
70 |
4-10 |
27 |
155 |
|
D441X |
200 |
295 |
340 |
12-22 |
375 |
170 |
22*16/17 |
1-5 |
125 |
102/89 |
4-12/14 |
45 |
282 |
|
D441X |
250 |
355 |
405 |
12-26 |
433 |
198 |
28.5*22/22 |
1-8 |
125 |
102/89 |
4-12/14 |
45 |
434 |
|
D441X |
300 |
410 |
460 |
12-26 |
503 |
223 |
31.6*25/22 |
1-8 |
125 |
108 |
4-14 |
50 |
670 |
|
D441X |
350 |
470 |
520 |
16-26 |
590 |
260 |
31.6*25/22 |
1-8 |
150 |
125/108 |
4-14 |
50 |
1000 |
|
D441X |
400 |
525 |
580 |
16-30 |
660 |
290 |
33.3/22 |
1-10 |
197 |
165/159 |
4-22 |
64 |
1664 |
|
D441X |
450 |
585 |
640 |
20-30 |
720 |
320 |
38/27 |
1-12 |
197 |
165/159 |
4-22 |
64 |
1890 |
|
D441X |
500 |
650 |
715 |
20-33 |
900 |
400 |
41/27 |
1-12 |
197 |
165/159 |
4-22 |
64 |
2440 |
|
D441X |
600 |
770 |
840 |
20-36 |
1027 |
457 |
50.5/36 |
2-16 |
210/276 |
165/159 |
4-22 |
70 |
3350 |
|
D441X |
700 |
840 |
910 |
24-36 |
1072 |
490 |
60/46 |
2-18 |
300 |
254 |
8-18 |
82 |
5600 |
|
D441X |
800 |
950 |
1025 |
24-39 |
1155 |
525 |
60/46 |
2-20 |
300 |
254 |
8-18 |
82 |
7300 |
|
D441X |
900 |
1050 |
1125 |
28-39 |
1260 |
570 |
75/55 |
2-22 |
300 |
254 |
8-18 |
118 |
10000 |
|
D441X |
1000 |
1170 |
1255 |
28-42 |
1390 |
645 |
85/55 |
2-25 |
300 |
254 |
8-18 |
148 |
13000 |
|
D441X |
1200 |
1390 |
1485 |
32-48 |
1710 |
785 |
105/75 |
2-28 |
350 |
298 |
8-22 |
160 |
20000 |
