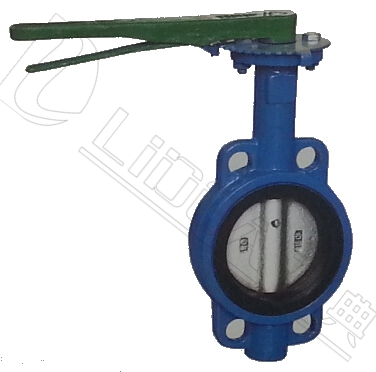

D471X系列对夹式蝶阀
|
|
|
技术参数 |
||
|
公称压力 PN16 |
环境温度 -20℃～+80℃ |
|
|
密封材料 NBR、EPDM、PTFE |
工作温度 |
C1：-10℃～60℃ |
|
连接方式 对夹式 |
C2：-20℃～80℃ |
|
|
阀体材质 WCB、SS304、SS316、SS316L |
C3：-20℃～120℃ |
|
|
阀板材质 铸铁、WCB、SS304、SS316、SS316L |
C4：-40℃～150℃ |
|
|
|
||||||||||||||
|

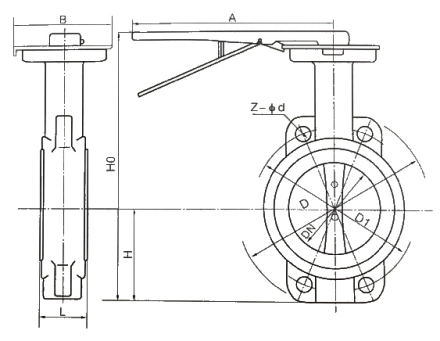

主要外形及连接尺寸 |
||||||||||||||
|
型号 |
通径 |
ΦA |
N-M |
ΦB |
H |
H1 |
G*f/K |
J |
H2 |
ΦE |
Z-Φ |
ΦD |
ΦD1 |
ΦD2 |
|
D471X |
40 |
110 |
4-16 |
65/90 |
193 |
60 |
12.6*9.8/11 |
1-3 |
27 |
50/57 |
4-7.5/10 |
101 |
76 |
48 |
|
D471X |
50 |
125 |
4-16 |
65/60 |
193 |
60 |
12.6*9.8/11 |
1-3 |
27 |
50/57 |
4-7.5/10 |
101 |
76 |
48 |
|
D471X |
65 |
145 |
4-16 |
65/90 |
212 |
70 |
12.6*9.8/11 |
1-3 |
27 |
50/57 |
4-7.5/10 |
117 |
89 |
62 |
|
D471X |
80 |
160 |
8-16 |
65/90 |
232 |
82 |
12.6*9.8/11 |
1-3 |
27 |
50/57 |
4-7.5/10 |
127 |
103 |
77 |
|
D471X |
100 |
180 |
8-16 |
90 |
280 |
101 |
15.8*10/11 |
1-5 |
27 |
70 |
4-10 |
157 |
135 |
98 |
|
D471X |
125 |
210 |
8-16 |
90 |
302 |
117 |
18.9*13/14 |
1-5 |
27 |
70 |
4-10 |
181 |
159 |
121 |
|
D471X |
150 |
240 |
8-20 |
90 |
330 |
129 |
22*16/17 |
1-5 |
27 |
70 |
4-10 |
214 |
188 |
148 |
|
D471X |
200 |
295 |
12-20 |
120 |
419 |
166 |
28.5*22/22 |
1-5 |
40 |
102/89 |
4-12 |
266 |
238 |
200 |
|
D471X |
250 |
350/355 |
12-24 |
120 |
482 |
195 |
31.6*25/22 |
1-8 |
45 |
102/89 |
4-12 |
318 |
292 |
248 |
|
D471X |
300 |
400/410 |
12-24 |
150 |
553 |
236 |
31.6*25/22 |
1-8 |
50 |
125/108 |
4-14 |
374 |
344 |
299 |
|
D471X |
350 |
460/470 |
16-24 |
150 |
635 |
267 |
33.3/22 |
1-8 |
50 |
125/108 |
4-14 |
436 |
375 |
331 |
|
D471X |
400 |
515/525 |
16-27 |
197 |
709 |
309 |
38/27 |
1-10 |
64 |
165/159 |
4-22 |
488 |
439 |
387 |
|
D471X |
450 |
565/585 |
20-27 |
197 |
750 |
328 |
41/27 |
1-12 |
64 |
165/159 |
4-22 |
539 |
490 |
438 |
|
D471X |
500 |
620/650 |
20-30 |
197 |
840 |
360 |
50.5/36 |
1-12 |
64 |
165/159 |
4-22 |
594 |
535 |
489 |
|
D471X |
600 |
725/770 |
20-33 |
276 |
1021 |
459 |
60/46 |
2-16 |
70 |
165/159 |
4-22 |
824 |
653 |
590 |
|
D471X |
700 |
840 |
24-33 |
300 |
1140 |
520 |
60/46 |
2-18 |
82 |
254 |
8-18 |
895 |
744 |
692 |
|
D471X |
800 |
950 |
24-36 |
300 |
1263 |
591 |
75/55 |
2-20 |
82 |
254 |
8-18 |
1015 |
849 |
792 |
|
D471X |
900 |
1050 |
28-36 |
300 |
1376 |
656 |
85/55 |
2-22 |
118 |
254 |
8-18 |
1115 |
947 |
861 |
|
D471X |
1000 |
1160/1170 |
28-39 |
300 |
1522 |
722 |
|
2-25 |
148 |
254 |
8-18 |
1230 |
1053 |
961 |
