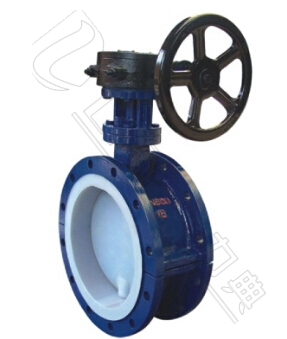

D41F4-10C、16P、D341F4-10C、16P法兰式衬四氟蝶阀
|
|
|
|
|
|
|
|
|
主要零件及材料 |
衬四氟蝶阀标准 |
||
|
零件名称 |
材料 |
设计标准 |
GB12238 |
|
上下阀体 |
铸铁、铸钢、不锈钢、衬F4 |
结构长度 |
GB12221 |
|
阀 座 |
F4 |
法兰标准 |
JB/T79-94 |
|
带杆碟板 |
全衬（WCB包衬）、半衬（不锈钢） |
GB9113.1-26 |
|
|
衬 垫 |
硅橡胶 |
检验试验 |
GB/T13927 |
|
涡轮手柄 |
Qt400-15球墨铸铁、铝合金 |
驱动方式 |
涡轮、手动、电动、气动 |
|
|
|
|
|
|
|
|
|
|
|
|
主要外形连接尺寸 |
|||||||||
|
型号 |
外形尺寸 |
连接尺寸 |
|||||||
|
L |
H2 |
H1 |
1.0MPa |
1.6MPa |
|||||
|
D |
D1 |
Z-Φd |
D |
D1 |
Z-Φd |
||||
|
D41F4-10C |
50 |
2 |
43 |
143 |
85 |
165 |
125 |
100 |
3 |
|
D41F4-10C |
65 |
2 1/2 |
46 |
157 |
93 |
185 |
145 |
120 |
3 |
|
D41F4-10C |
80 |
3 |
46 |
178 |
100 |
200 |
160 |
135 |
3 |
|
D41F4-10C |
100 |
4 |
52 |
185 |
110 |
220 |
180 |
155 |
3 |
|
D41F4-10C |
125 |
5 |
56 |
206 |
120 |
250 |
210 |
185 |
3 |
|
D41F4-10C |
150 |
6 |
56 |
225 |
160 |
285 |
240 |
210 |
3 |
|
D41F4-10C |
200 |
8 |
60 |
275 |
245 |
340 |
295 |
265 |
3 |
|
D41F4-10C |
250 |
10 |
68 |
326 |
260 |
395 |
350 |
320 |
4 |
|
D41F4-10C |
300 |
12 |
78 |
333 |
300 |
445 |
400 |
370 |
4 |
|
D41F4-10C |
350 |
14 |
78 |
393 |
320 |
505 |
460 |
430 |
4 |
|
D41F4-10C |
400 |
16 |
102 |
438 |
330 |
565 |
515 |
480 |
4 |
|
D41F4-10C |
450 |
18 |
114 |
488 |
380 |
615 |
565 |
530 |
4 |
|
D41F4-10C |
500 |
20 |
127 |
540 |
390 |
670 |
620 |
580 |
4 |
|
D41F4-10C |
600 |
24 |
154 |
615 |
450 |
780 |
725 |
680 |
5 |
|
D41F4-10C |
700 |
28 |
165 |
660 |
480 |
895 |
840 |
795 |
5 |
|
D41F4-10C |
800 |
32 |
190 |
720 |
580 |
1015 |
950 |
900 |
5 |
|
D41F4-10C |
900 |
36 |
203 |
785 |
625 |
1115 |
1050 |
1000 |
5 |
|
D41F4-10C |
1000 |
40 |
216 |
900 |
660 |
1230 |
1160 |
1115 |
5 |
|
D41F4-10C |
1200 |
48 |
254 |
1070 |
780 |
1455 |
1380 |
1330 |
5 |
